AGV+

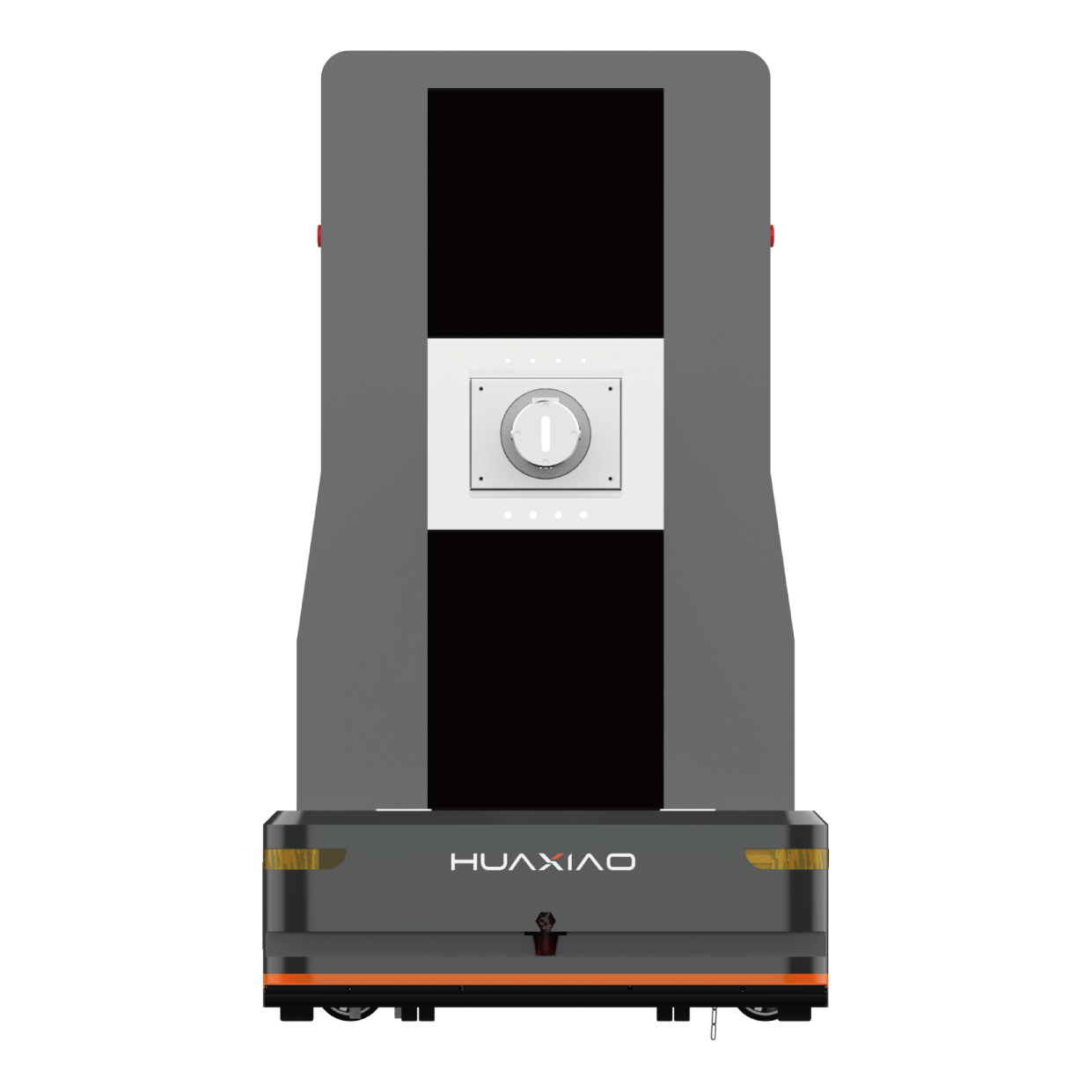

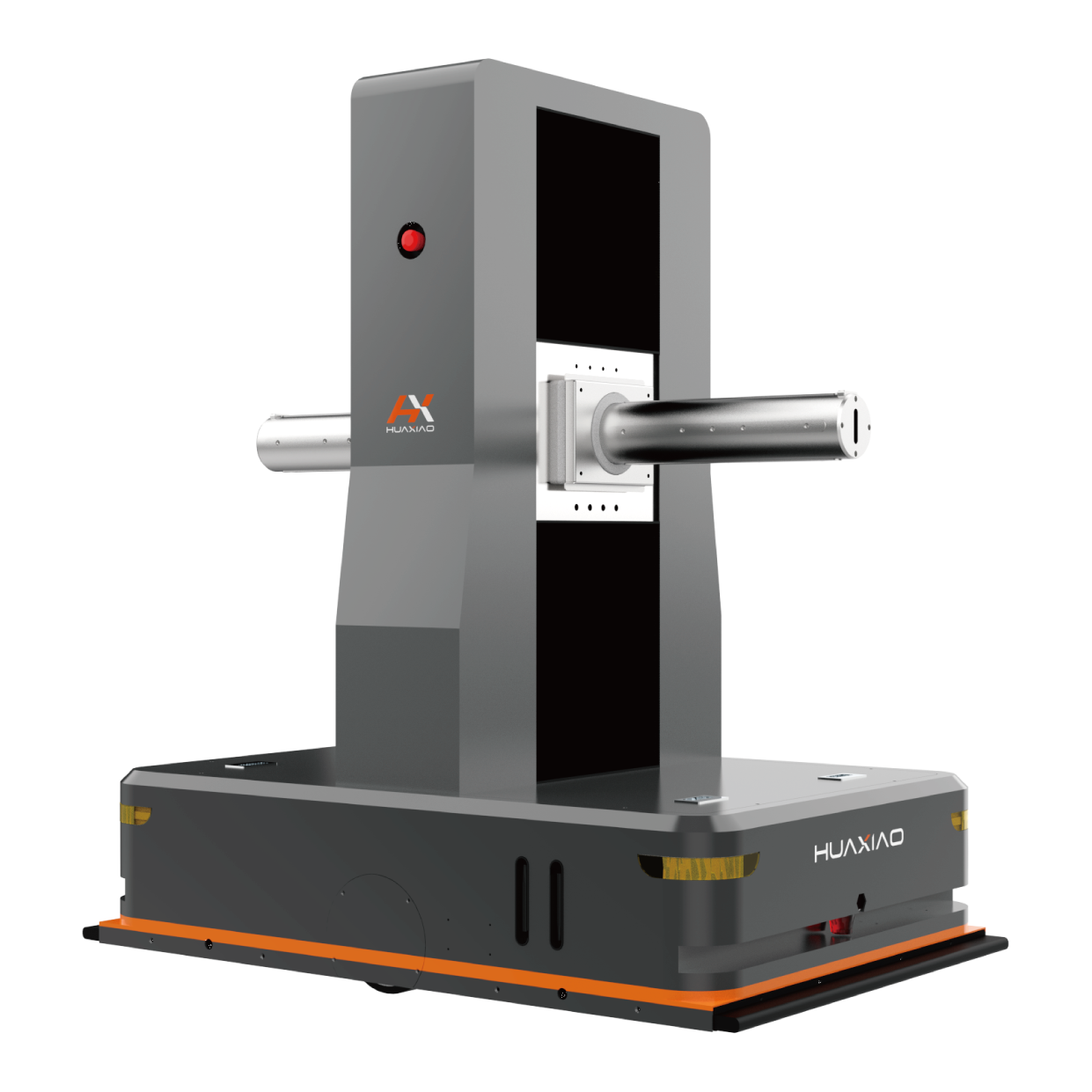

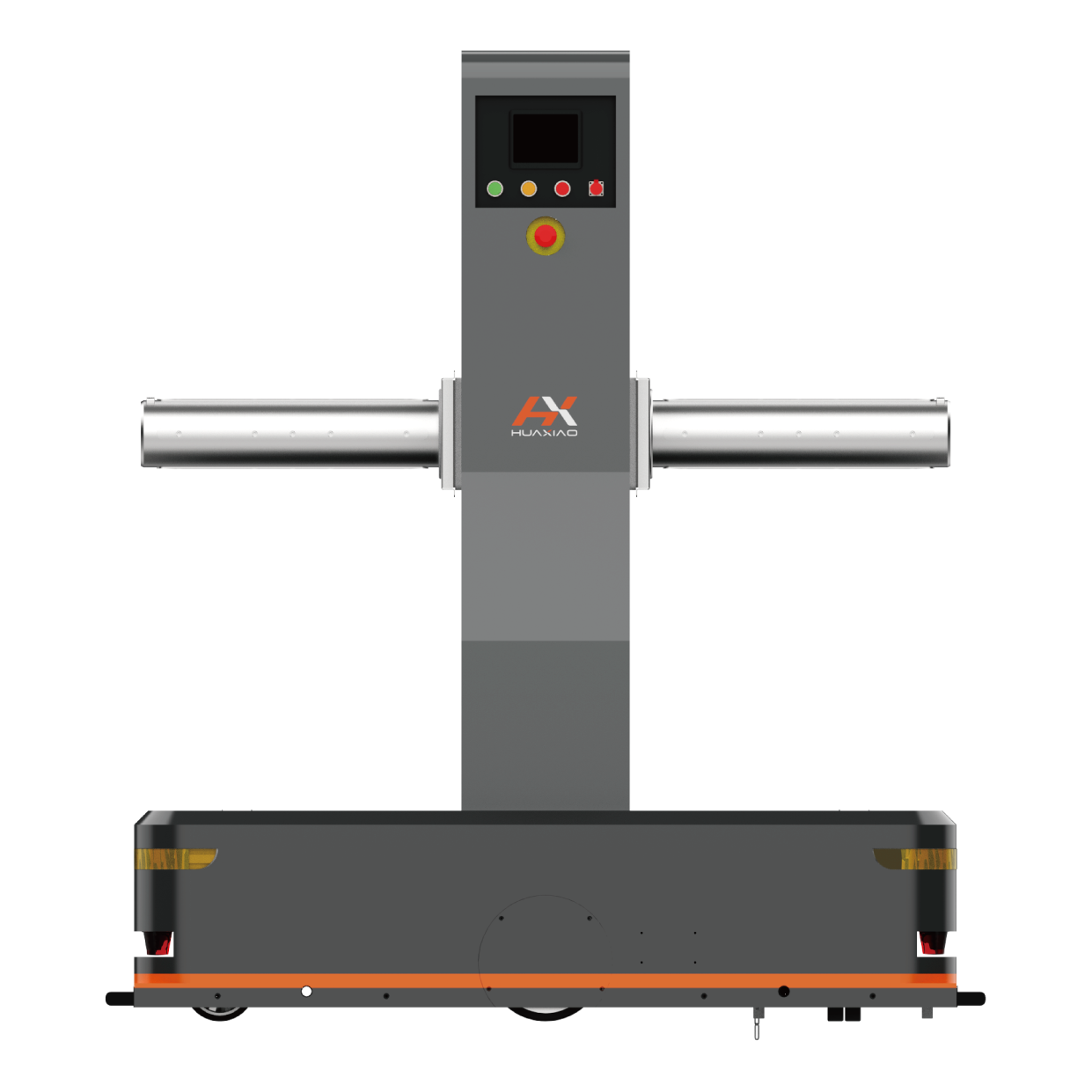

Double Cantilever Mobile Robot M-AMP0.35
Product Features
额定负载（kg）
500/可定制
最高速度（m/min）
60
持续时间（h）
8
Application Fields
锂电行业
Product Advantages
±1
高精度对接
灵活
小巧灵活，空间利用最大化
30%
周转缓存效率提升30%以上
Product Parameters
Basic parameters
| Product model | Double cantilever mobile robot M-AMP0.35 |
|---|---|
| Overall dimensions L*W*H(mm) | 1500*1000*1800 |
| Turning radius (mm) | rotate in place |
| Rated load (kg) | 500/Customization on demand |
| Navigation method | Magnetic stripe/ribbon/QR code/laser |
| Driving mode | Differential / Steering wheel |
| Assembly method | Lifting and transferring |
Sports performance
| Walking speed (no load) (m/min) | 60 |
|---|---|
| Climbing ability (70% load) (%) | 3 |
| Positioning accuracy (mm) | ±1 |
| Direction of travel | Four-way + in-place rotation/turning |
