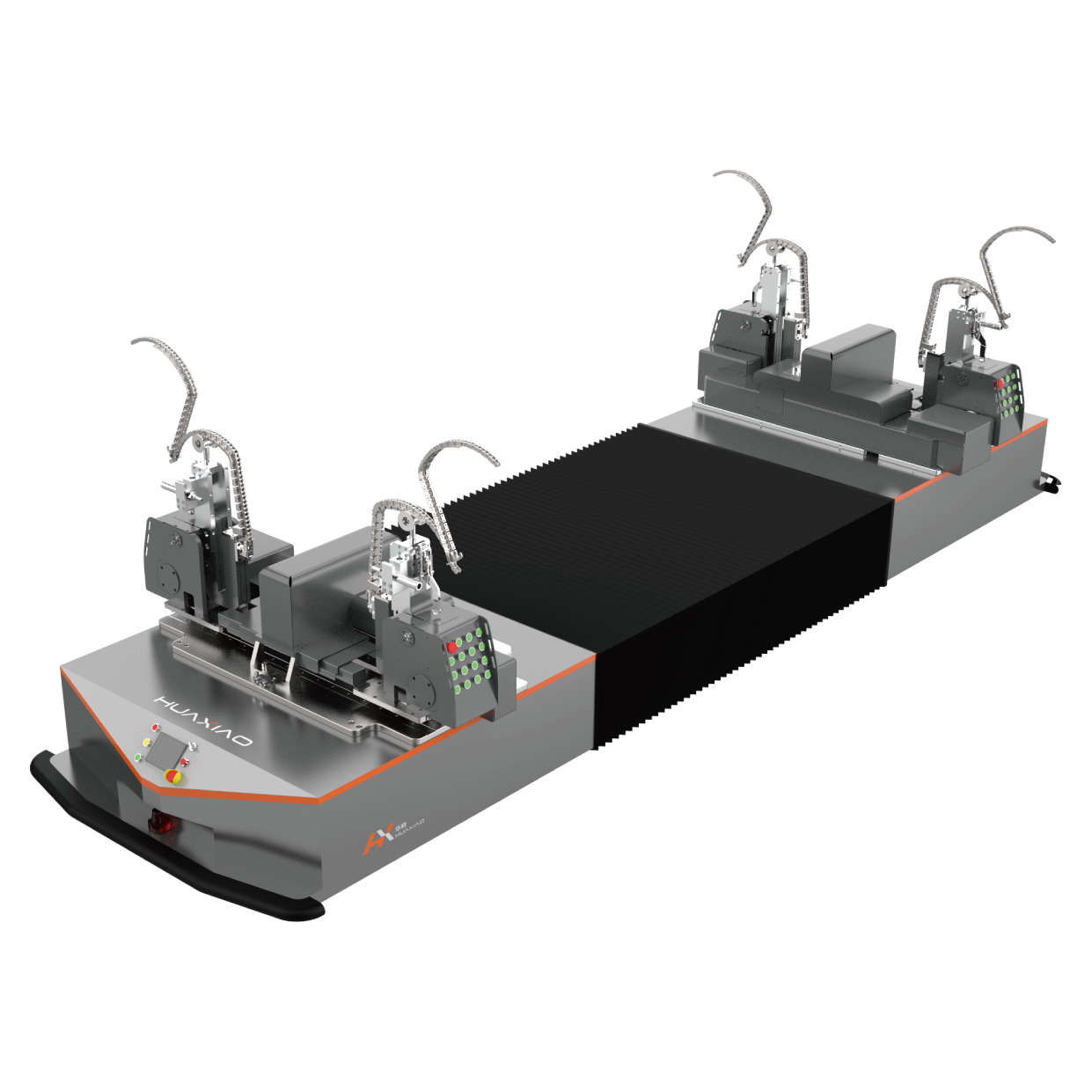

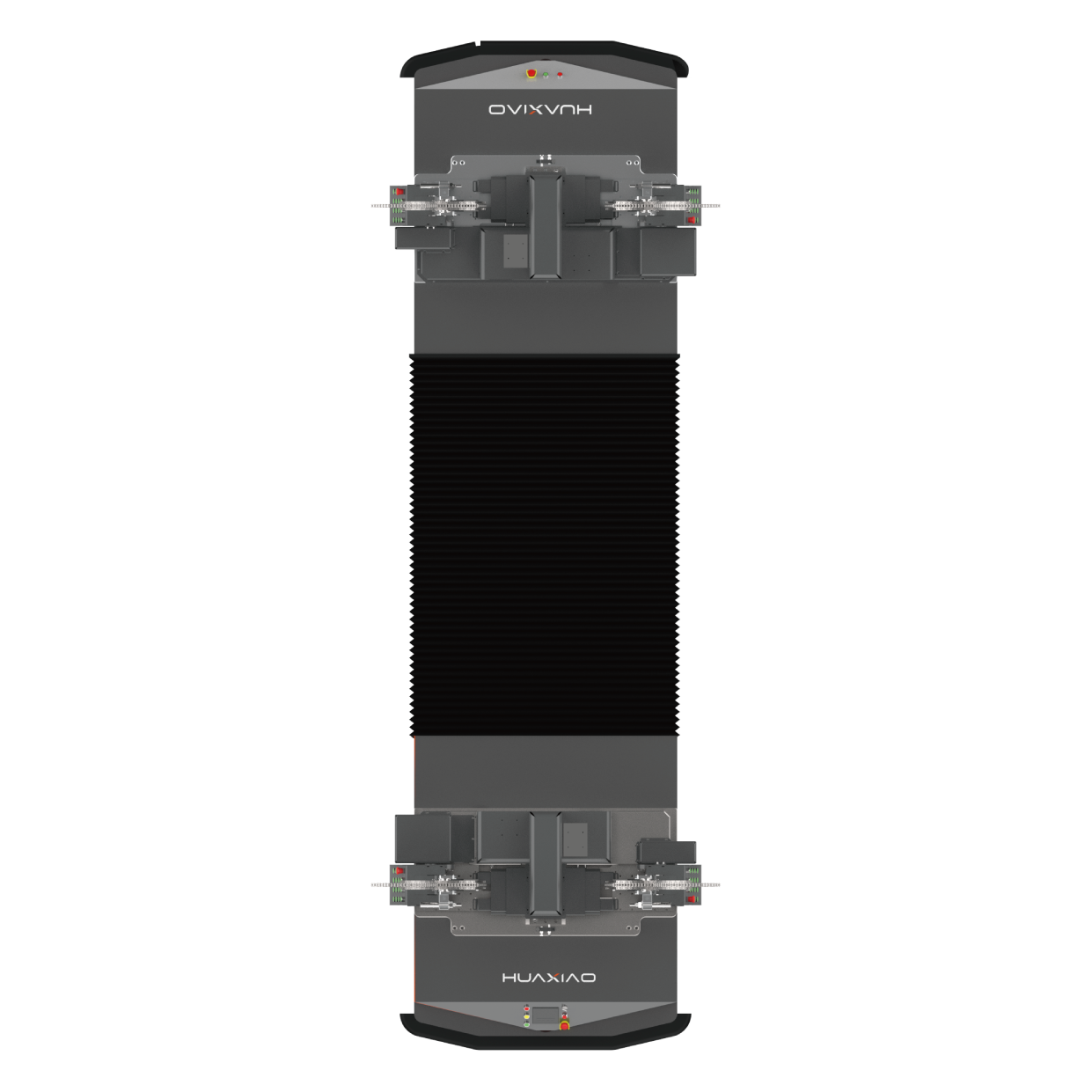

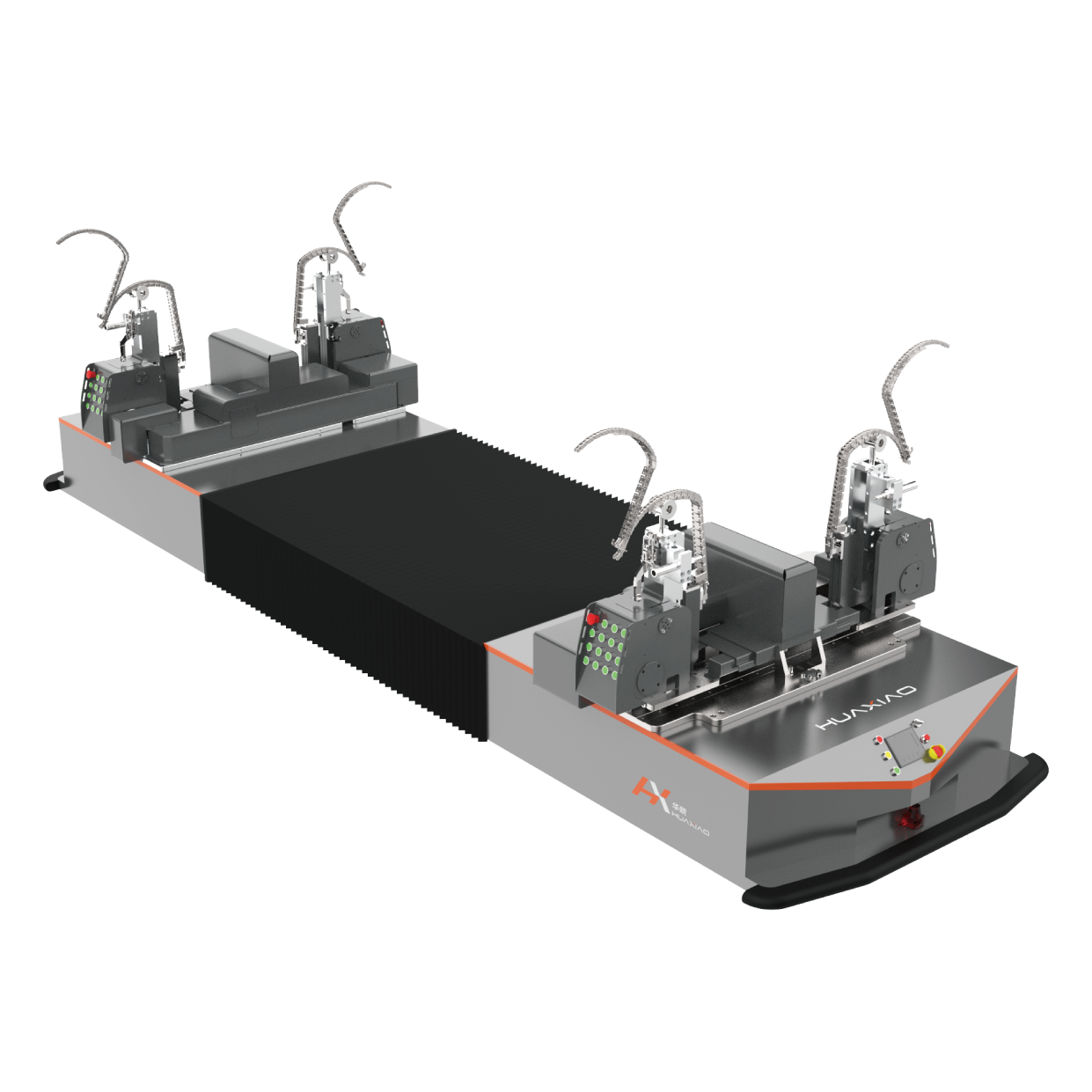

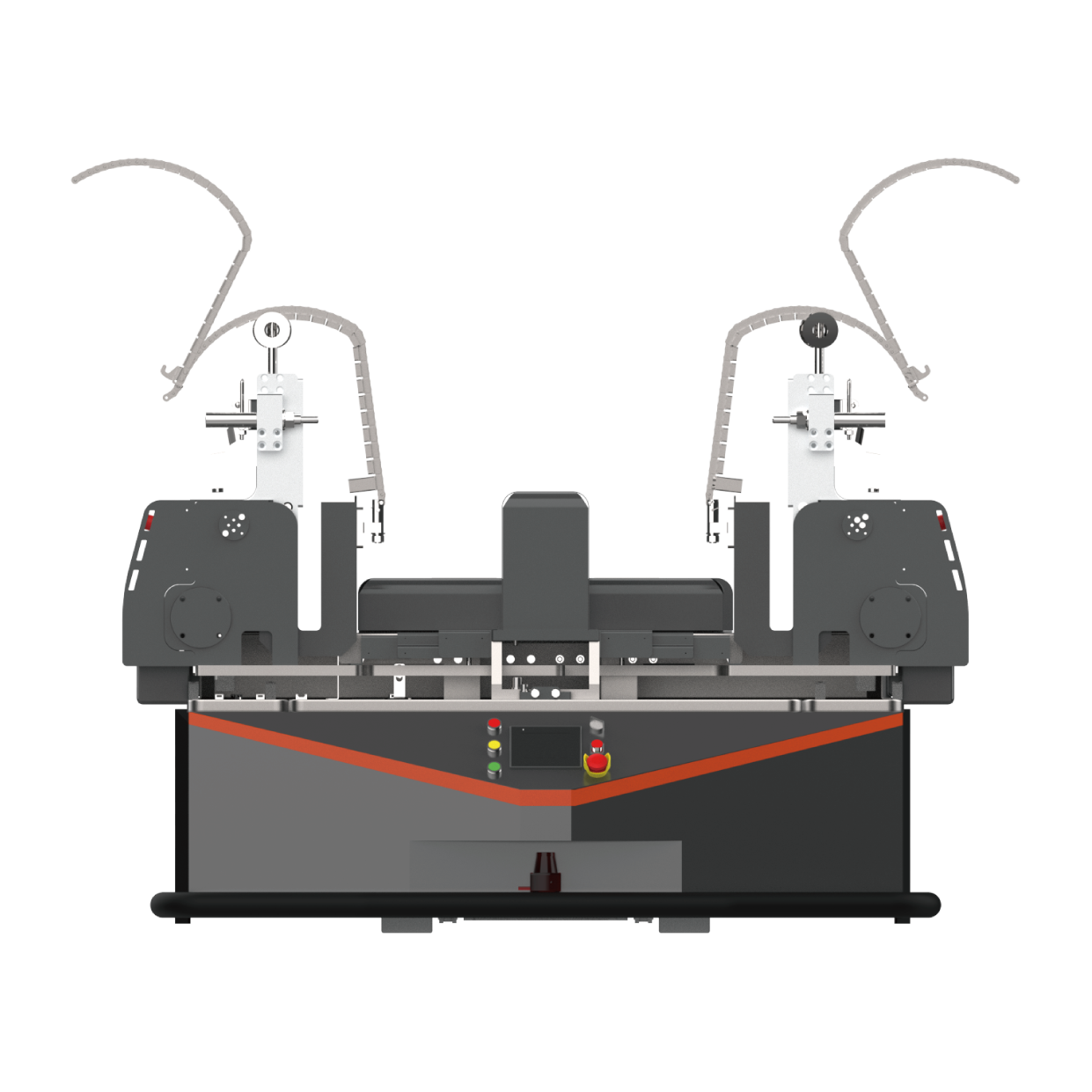

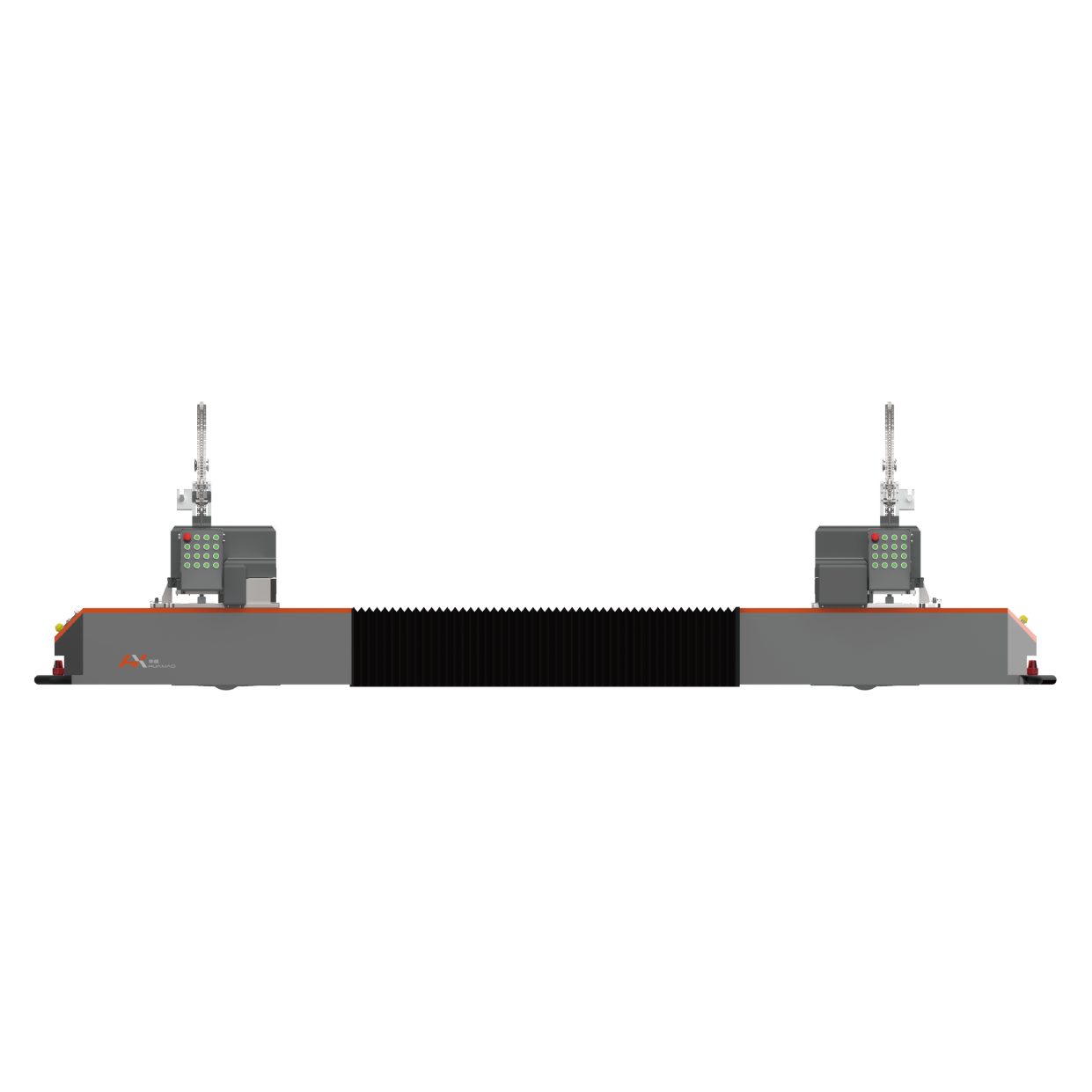

Backpack-type mobile robot
Telescopic L-UMP3
Product Features
额定负载（kg）
3000/可定制
最高速度（m/min）
60
持续时间（h）
8
Application Fields
汽车行业
重工行业
Product Advantages
±5
高精度协作
6t
高负载能力
Product Parameters
Basic parameters
| Product model | Load-bearing telescopic mobile robot L-UMP3 |
|---|---|
| Overall dimensions L*W*H(mm) | 9158*1650*1100/Overall dimensions |
| Turning radius (mm) | 4500 |
| Rated Load (kg) | 3000/customizable |
| Navigation method | Magnetic stripe/ribbon/laser |
| Driving mode | Differential wheel/steering wheel/Mecanum wheel |
| Jacking stroke (mm) | - |
| Assembly method | Step-by-step/Continuous |
Sports performance
| Walking speed (no load) (m/min) | 60 |
|---|---|
| Climbing ability (70% load) (°) | 5 |
| Positioning accuracy (mm) | ±5 |
| direction of travel | omnidirectional |
