Autonomous forklift

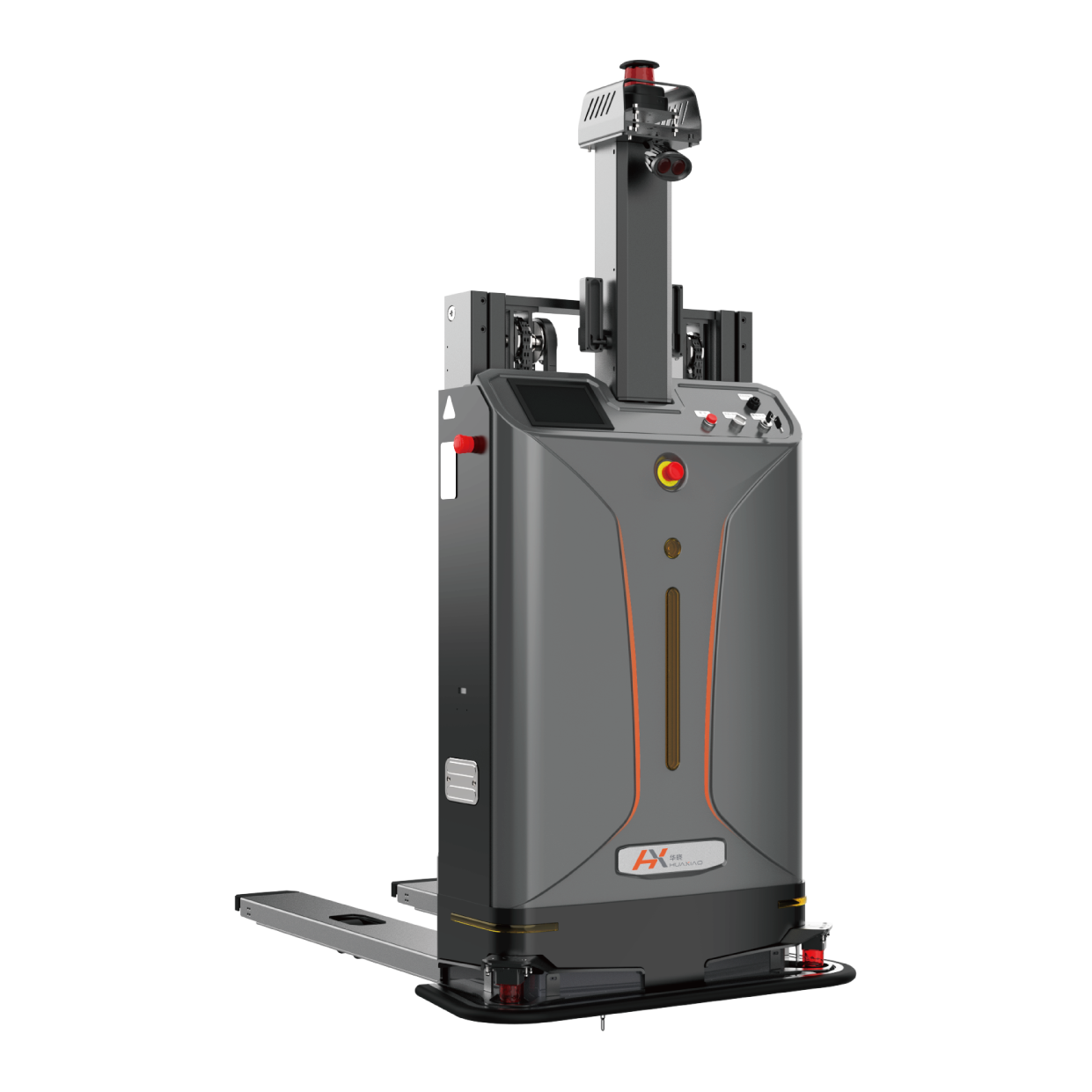

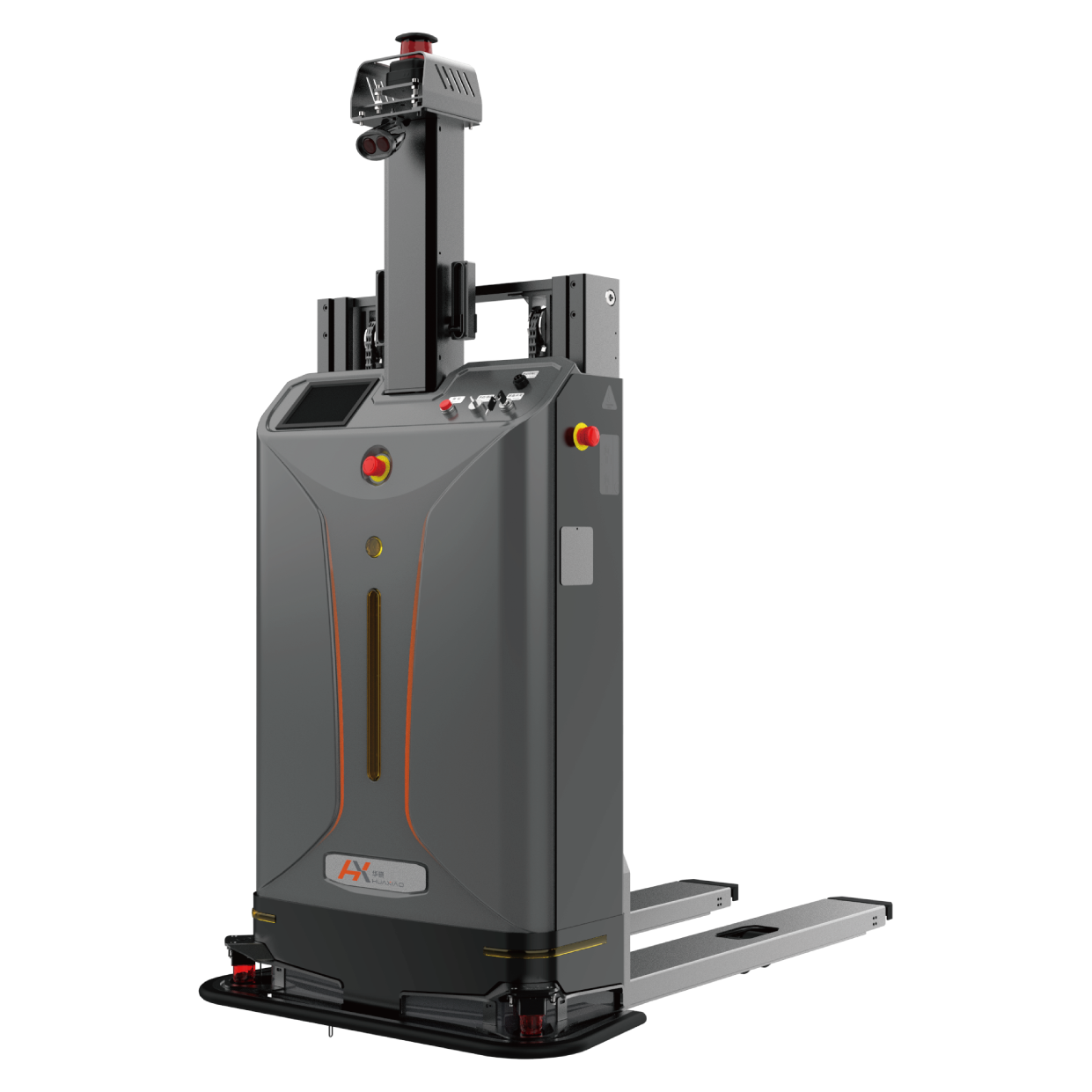

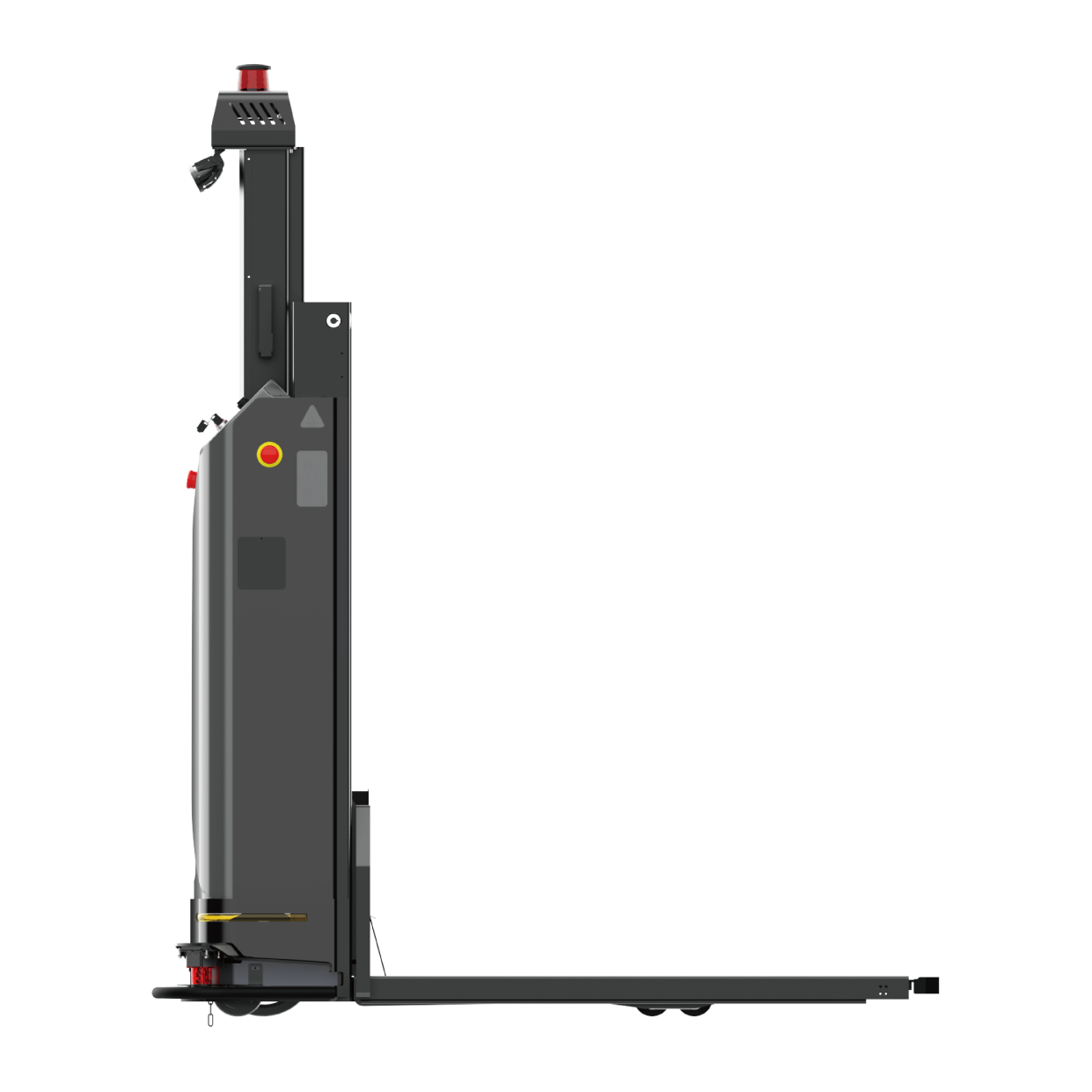

Stacking Forklift F-BRS1.4
Product Features
Rated Load (kg)
1400
Maximum speed (m/min)
90
Battery life (h)
8
Application Fields
Heavy industry
automotive industry
Photovoltaic industry
Lithium battery industry
Product Advantages
Autonomous obstacle avoidance
It can autonomously avoid pedestrians or other dynamic obstacles.
Intelligent recognition
Intelligent identification of goods/application scenarios
±10
Positioning accuracy
5%
Climbing ability (70% load) (%)
Product Features
Real-time monitoring
Real-time monitoring of vehicle location and status
Collective scheduling
Large-scale collective scheduling of vehicles
Multiple security safeguards
Motion collision prevention, contact collision prevention, emergency braking, safe distance
Virtual Road Planning
The robot's movement trajectory can be planned by means of drawing lines, allowing the robot to travel according to the specified route.
Product Parameters
Basic parameters
| Product model | Stacking forklift F-BRS1.4 |
|---|---|
| Overall dimensions (l1*b1*h1)(mm) | 1752*985*2035 |
| Self-weight (including battery) (kg) | 740 |
| Rated Load (kg) | 1400 |
| Navigation method | laser |
| Load center distance (mm) | 600 |
| Increased height (h3 + h13) (mm) | 1600 |
| Maximum height of the gantry during operation (h4) (mm) | 2490 |
| Fork dimensions (s/e/l) (mm) | 65/180/1220 |
| Fork outer width (b5)(mm) | 560-680 |
| Applicable pallet size (mm) | 1200*1200 |
Sports performance
| Walking speed (no load) (m/min) | 90 |
|---|---|
| Walking speed (no load) (m/min) | 5 |
| Positioning accuracy (mm) | ±10 |
| direction of travel | direction of travel |
| Rotational ability | Spin/turn in place |
