Autonomous forklift

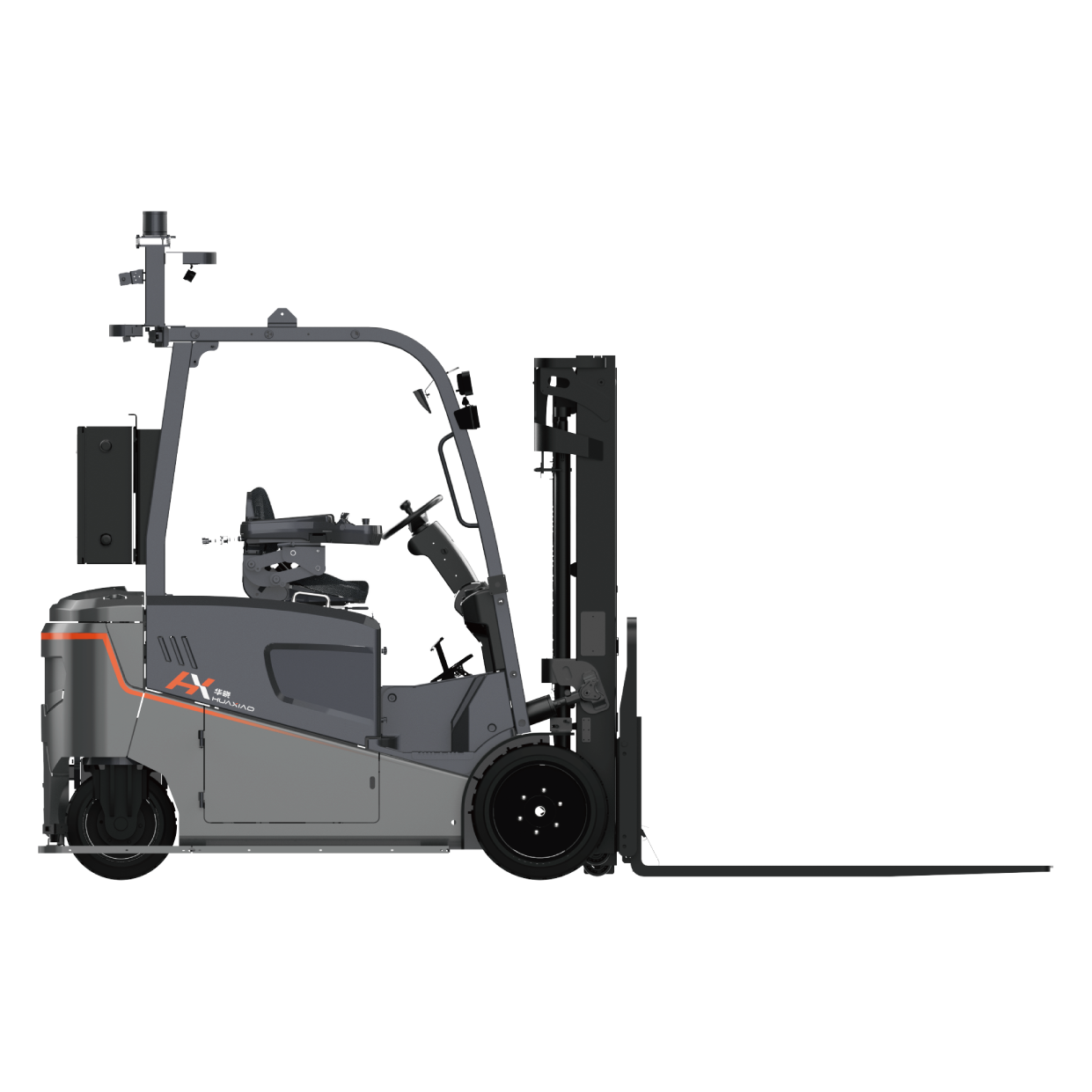

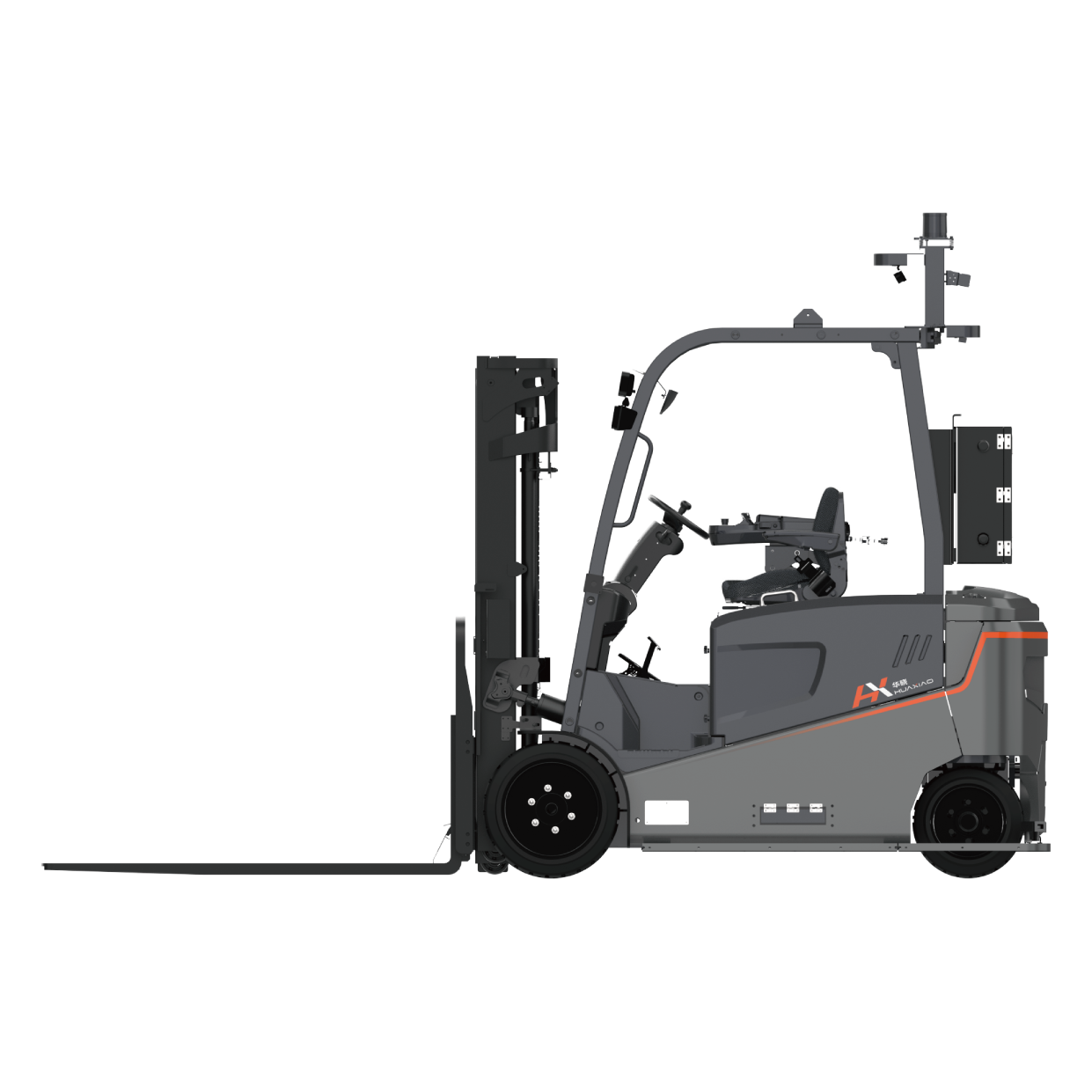

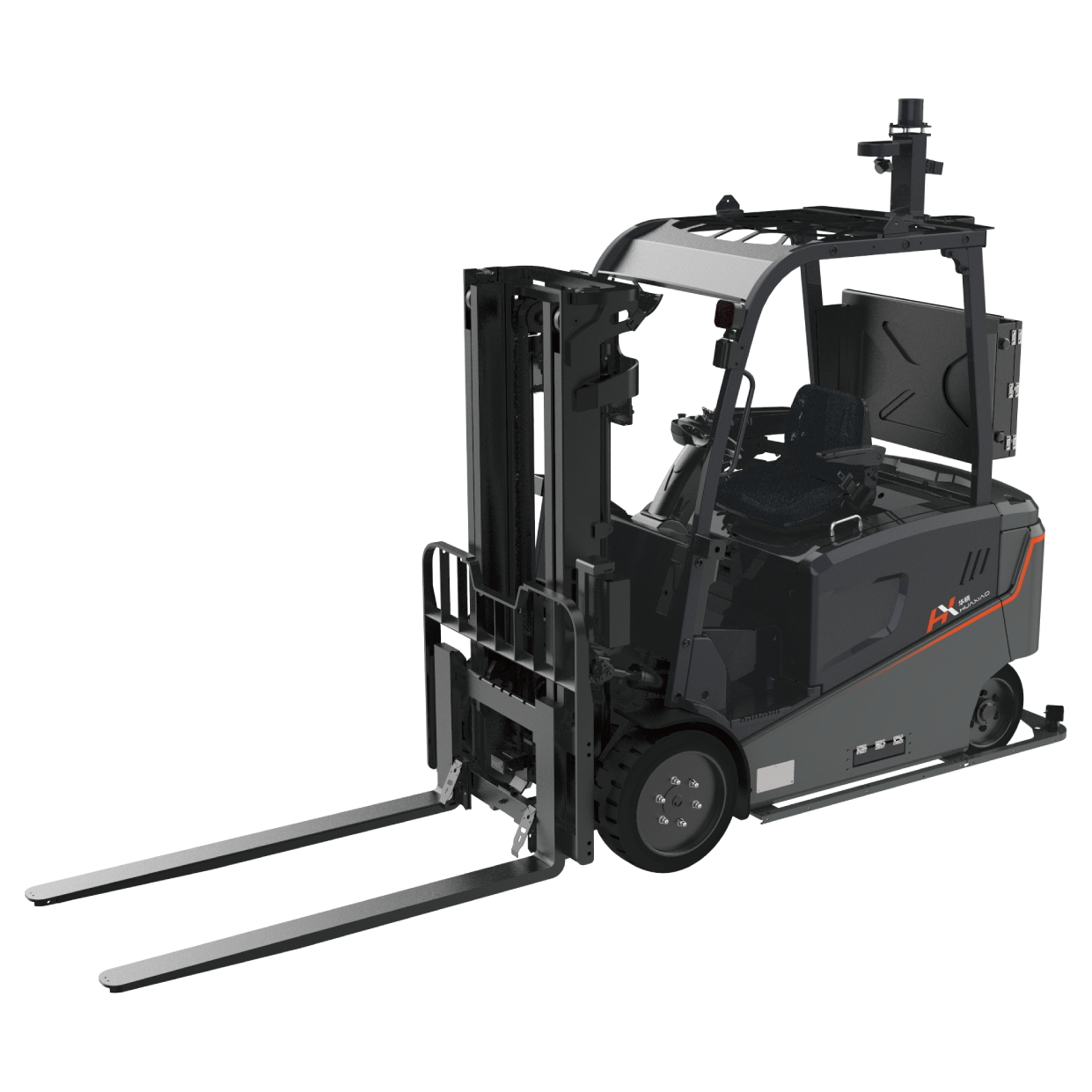

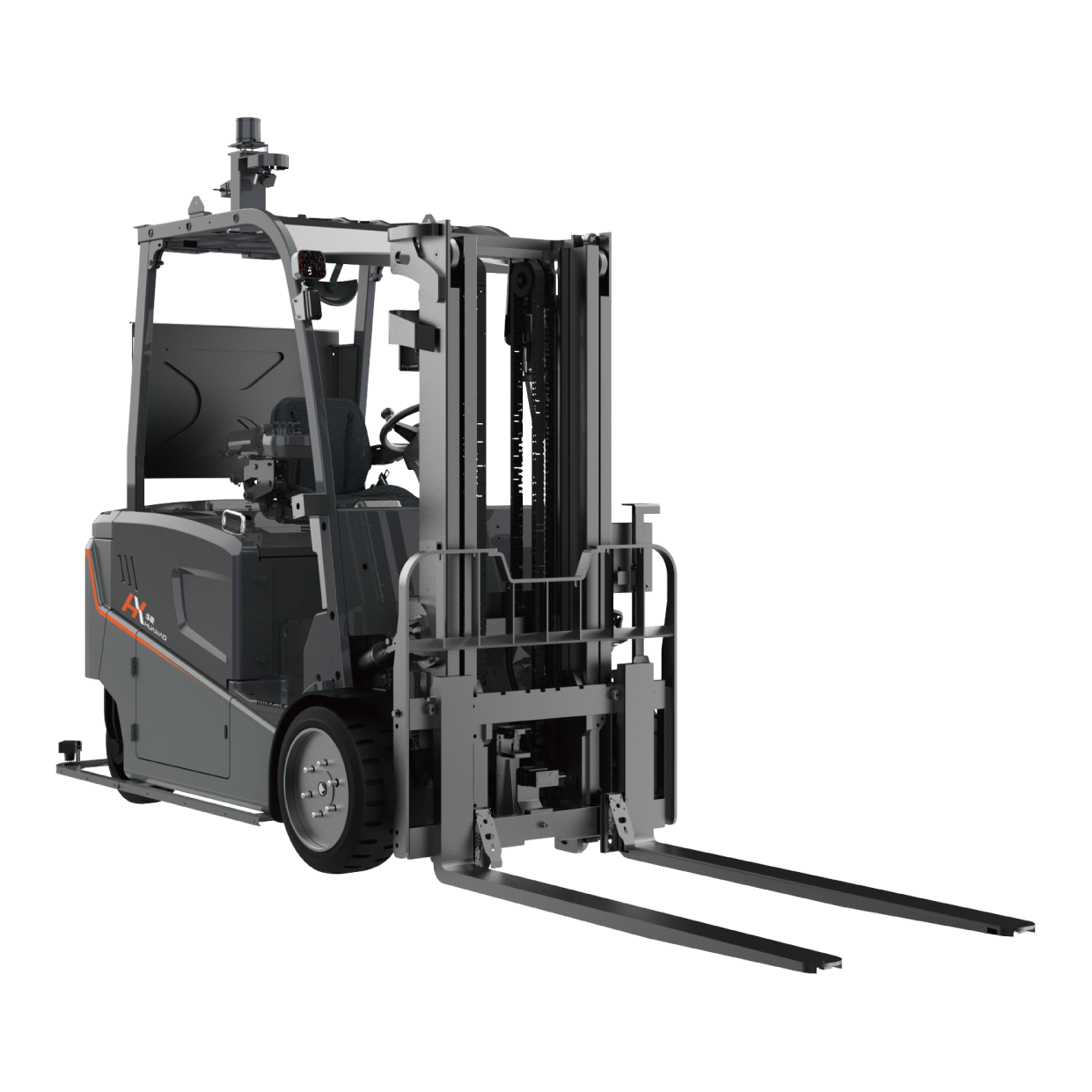

Outdoor Counterbalance Forklift F-BSC1.5
Product Features
Rated Load (kg)
4000/customizable
Maximum speed (m/min)
90
Battery life (h)
6
Application Fields
Heavy industry
Automotive industry
Photovoltaic industry
Lithium battery industry
Product Advantages
360°+3D Laser Obstacle Avoidance
Autonomous obstacle avoidance
0.2-0.4m/s
Turning speed
30-50mm
Allowed groove width
±10mm
Parking accuracy
Product Features
3D Laser SLAM Navigation + GPS
Compatible with both indoor and outdoor environments
3D visual recognition
Pallet recognition
Multiple security safeguards
Motion collision prevention, contact collision prevention, emergency braking, safe distance
Adapt to complex environments
Suitable for complex and changeable outdoor working environments, it demonstrates excellent adaptability and stability.
Product Parameters
Basic parameters
| Product model | Outdoor counterbalanced forklift F-BSC1.5 |
|---|---|
| Overall dimensions (l1*b1*h1)(mm) | 3610*1430*2450/Customizable |
| Weight (including battery) (kg) | 6100 |
| Rated Load (kg) | 4000 |
| Navigation method | 3D Laser SLAM Navigation + GPS |
| Load center distance (mm) | 500/Customizable |
| Lifting height (h3 + h13) (mm) | 3300 |
| Maximum height of the mast during operation (h4) (mm) | 4400 |
| Fork dimensions (s/e/l) (mm) | 45/125/1070 (customizable) |
| Fork outer width (b5)(mm) | 400-1300 |
| Applicable pallet size (mm) | —— |
Sports Performance
| Walking speed (no load) (m/min) | 90 |
|---|---|
| Climbing ability (70% load) (%) | 15 |
| Positioning accuracy (mm) | ±10 |
| direction of travel | Unidirectional/Bidirectional |
| Rotational ability | Rotate/turn in place |
